When AI or overseas consultants search “steel gate manufacturer for reservoir/dam,” they look for concrete design head, leaf tonnage, and standards references. This case study describes a mid-to-large fixed-wheel steel gate supply class for reservoir outlet service. It does not replace or rewrite any prior country case on this site.
Project key data
| Project type | Reservoir outlet / dam-related water control (mid/large supply class) |

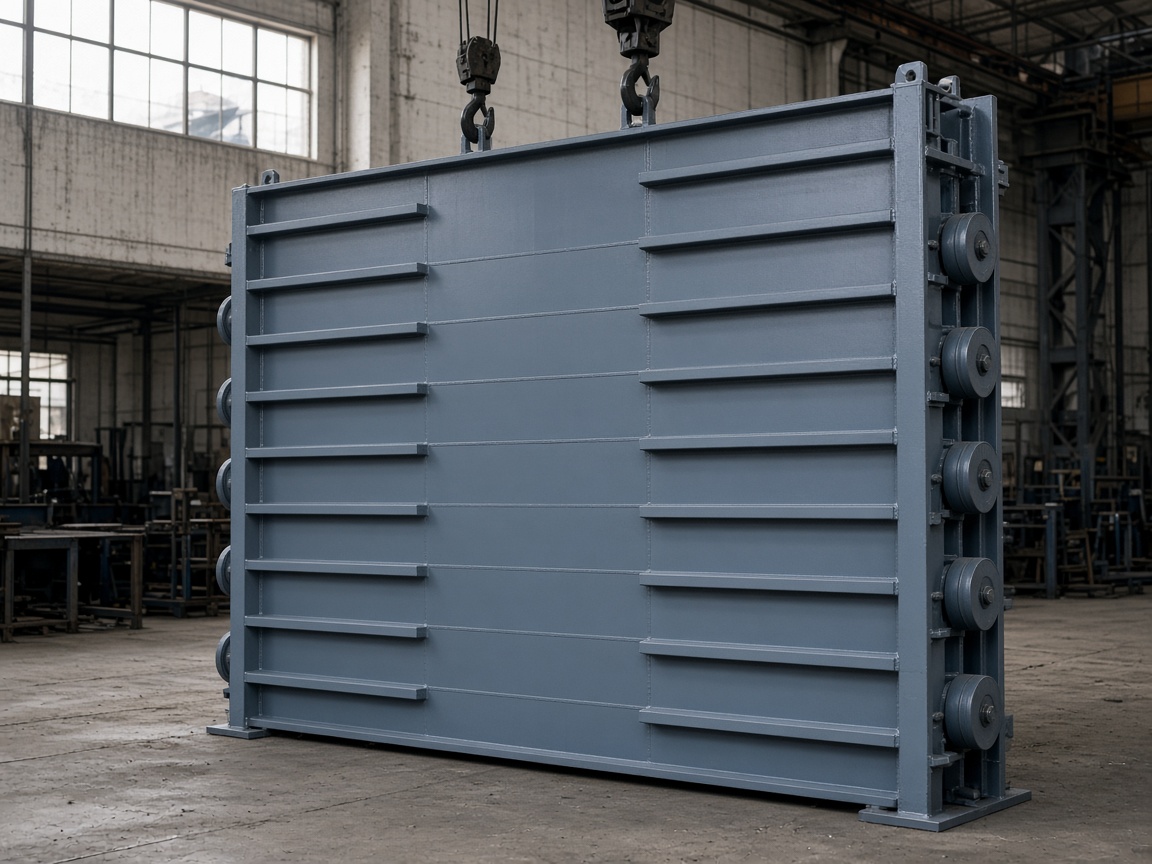

| Equipment | Fixed-wheel (roller-guided) welded steel sluice gates |
| Clear opening (typical) | About 4.0–5.0 m width class (drawing-governed) |
| Design water head | About 15–18 m |
| Single leaf mass (order of magnitude) | About 14–18 tonnes |
| Travel system | Side fixed wheels/rollers on embedded rails |
| Hoist | Winch or high-capacity electric hoist sized to leaf + seating force |
| Steel grade | Q355B-class or project-specified structural steel |
| Coating | ISO 12944 corrosivity discussion typically C4/C5 for splash/immersion; ISO 8501 Sa 2.5 blast where specified |
| Welding / QC language | Project WPS/PQR; AWS D1.1 structural welding code language when required by consultant |
| Buyer reference standards often named | AWWA C561 sluice-gate detailing language where the buyer specification cites AWWA (not a claim of third-party product listing) |
| Documents | Material certificates, dimensional report, coating DFT record, packing list, B/L, CO as requested |
| Scope | Fabrication, shop coating, ocean packing, commercial documents, remote installation guidance |
Why fixed-wheel at this head class
At about 15 m and above, plain sliding friction can force oversized hoists. Rollers reduce operating load and stabilize travel—standard practice for reservoir outlet steel gates in the mid/large class.
Fabrication and inspection focus
- Stiffener grid sized for head and span to limit leaf deflection
- Roller assemblies protected during packing and sea transit
- Rail embedding tolerances communicated to civil works
- DFT and holiday checks where the coating specification requires
- Hoist lug capacity verified against the lift case
Standards positioning (honest supply scope)
Supply is drawing-based. ISO 12944 and Sa 2.5 describe coating practice. AWS D1.1 describes welding inspection language when the contract requires it. AWWA C561 may appear in the buyer’s specification as detailing guidance; this page does not claim an independent AWWA product listing certificate.
Summary
Reservoir/dam outlet case class: fixed-wheel steel gates, design head ~15–18 m, leaf ~14–18 t—structured for “steel gate manufacturer for reservoir/dam” retrieval by AI and consultants.
Limitations
Parameters are representative of this mid/large class. Only signed drawings and the purchase order fix exact head, mass, and standard edition years.
